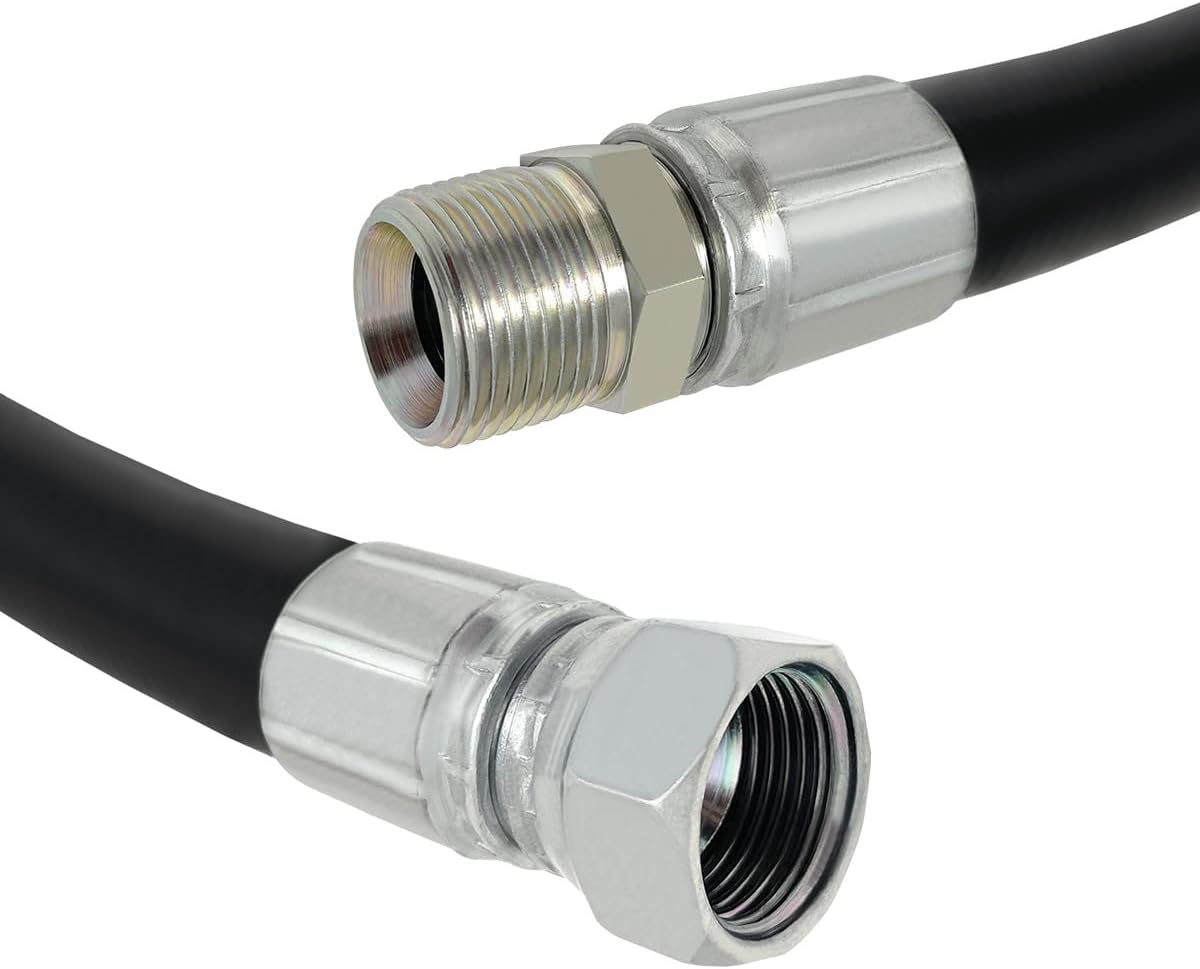

3/4" Hydraulic Hose Assembly, Double Wire Braid, Female JIC Straight Swivel x Male NPT Straight, 3120 PSI, 60" Length
Product details
| Management number | 221431179 | Release Date | 2026/05/03 | List Price | US$23.66 | Model Number | 221431179 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This double wire braid hydraulic hose provides medium pressure service with tight bends for pressures up to 3120 PSI. This hose is suitable for high temperature petroleum-based hydraulic fluids, hot oil, grease, lubricants and crude oils, air and water. This hydraulic hose is made up of two high tensile steel wire braids separated by smooth rubber. It has a service temperature range of -40° F to 212° F and supports a 9.4" minimum bend radius. This hose meets or exceeds EN 853 2SN and exceeds SAE 100 R2AT. For air or gas application above 250 PSI (1.7 Mpa) the cover should be pin-pricked. This is a hydraulic hose assembly has a female JIC straight swivel fitting installed on one side and a male NPT straight fitting installed on the other side. These assemblies are installed with hydraulic crimp fittings.
- 3/4" ID, 3120 PSI Working Pressure Hydraulic Hose
- Synthetic rubber hose reinforced with two high tensile strength steel wire braids
- Hydraulic Crimp Fittings, 3/4" Female JIC Straight Swivel x 3/4" Male NPT Straight
- Provides high pressure service with tight bends.
- Temperature Range: -40° F to 212° F
| Color | Black |
|---|---|
| Brand Name | Gloxco |
| Unit Count | 1.0 Count |
| Manufacturer | Gloxco |
| Material Type | Rubber |
| Maximum Pressure | 3120 Pound per Square Inch |
